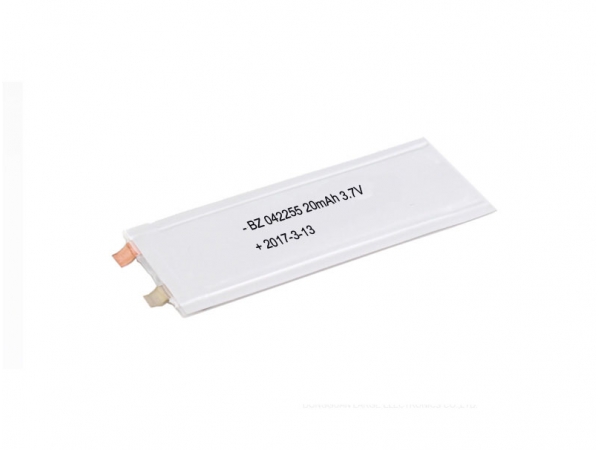

Model: super-thin lipo battery
Size: T0.4*W22*L55mm
Capacity: 20mAh
Voltage:3.7V
Weight: 1g
| No. | Item | General Parameter | Remark | |
| (序号) | （项目） | (常规参数) | （备注） | |
| 1 | Rated Capacity | Typical | 12mAh | Standard discharge（0.2C C5A) after Standard charge |
| （额定容量） | （典型容量） | （标准充电后0.2C5A标准放电） | ||
| Minimum | 10mAh | |||
| （最小容量） | ||||
| 2 | Nominal Voltage | 3.7V | Mean Operation Voltage | |
| （正常电压） | （即工作电压） | |||
| 3 | Voltage at end of | 2.75V | Discharge Cut-off Voltage | |
| Discharge | （放电截止电压） | |||
| （放电终止电压） | ||||
| 4 | Charging Voltage | 4.2±0.03V | ||
| (充电电压) | ||||
| 5 | Internal Impedance | ≤1100mΩ | Internal resistance measured at AC 1KHZ after 50% charge | |
| (内阻) | （半电态下用交流法测量内阻） | |||
| The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times | ||||
| (用出货后不到一个星期及循环次数不多于5次的新电池测量) | ||||
| 6 | Standard charge | Constant Current 0.2C5A | Charge time : Approx 6h | |
| （标准充电） | Constant Voltage 4.2V | （充电时间：大约6个小时） | ||
| 0.01 C5A cut-off | ||||
| （持续电流：0.2C5A | ||||
| 持续电压：4.2V | ||||
| 截止电流：0.01 C5A） | ||||
| 7 | Standard discharge | Constant current 0.2 C5A | ||
| （标准放电） | end voltage 2.75V | |||
| （持续电流：0.2C5A | ||||
| 截止电压：2.75V） | ||||
| 8 | Fast charge | Constant Current 1.0C5A | Charge time : Approx 2.5h | |
| (快速充电) | Constant Voltage 4.2V | （充电时间：大约2.5个小时） | ||
| 0.01 C5A cut-off | ||||
| （持续电流：1.0C5A | ||||
| 持续电压：4.2V | ||||
| 截止电流：0.01 C5A） | ||||
| 9 | Fast discharge | Constant current 1.0C5A | ||
| (快速放电) | end voltage 2.75V | |||
| （持续电流：1.0C5A | ||||
| 截止电压：2.75V） | ||||
| 10 | Maximum Continuous Charge Current | 1.0 C5A | ||
| (最大充电持续电流) | ||||
| 11 | Maximum Continuous Discharge Current | 1.0C5A | ||
| （最大放电持续电流） | ||||
| 12 | Operation Temperature Range | Charge（充电）: 10~45℃ | 60±25%R.H. | |
| （工作温度范围） | Discharge（放电）: -20~60℃ | Bare Cell | ||
| （单体电池储存湿度范围） | ||||
| 13 | Storage Temperature Range | Less than 1 year: -20~25℃ | 60±25%R.H. | |
| （储存温度范围） | （小于一年：-20~25℃） | at the shipment state | ||
| （出货状态时的湿度范围） | ||||
 |
