Cylindrical battery

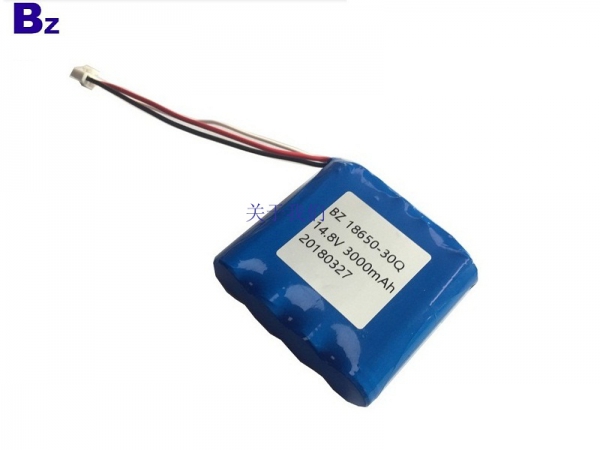

Hand-held Electric Tool Battery BZ 18650-30Q-4S 3000mah 15A Discharge 14.8V Li-ion Battery

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: BZ
    Model Number: 18650-4S
    Type: Li-polymer
    Nominal Voltage: 14.8V
    Size: 18650
    Nominal Capacity: 3000mAh
    Capacity: 3000mAh
    Voltage: 14.8V
    Cycle life: 500times
    Application: Hand-held electric tool battery
    Weight: 250G
    Warranty: 1 Year
    Battery type: Li-ion battery
    Standard charge: 1C
    Certificate: CE/RoHS/UN38.3/MSDS
    Payment: Paypal.TT.Escrow.Western Union

  • 18650-30Q-4S 3000mah 15A Discharge 14.8V Li-ion Battery
    18650 3000mah 15A Discharge 14.8V Li-ion Battery
    18650 3000mah 14.8V Li-ion Battery
    18650 3000mah Li-ion Battery


    Product Parameters

    No. Item General Parameter Remark
    1 Rated Capacity Typical 3100mAh Standard discharge(5C C5A) after Standard charge
    Minimum 3000mAh
    2 Nominal Voltage 14.8V Mean Operation Voltage
    3 Voltage at end of 12V Discharge Cut-off Voltage
    Discharge
    4 Charging Voltage 16.8±0.03V
    5 Internal Impedance ≤160mΩ Internal resistance measured at AC 1KHZ after 50% charge
    The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times
    6 Standard charge Constant Current 0.2C5A Charge time : Approx 6h
    Constant Voltage 4.2V
    0.01 C5A cut-off
    7 Standard discharge Constant current 5 C5A
    end voltage 12V
    8 Fast charge Constant Current 0.5C5A Charge time : Approx 2.5h
    Constant Voltage 4.2V
    0.01 C5A cut-off
    9 Fast discharge Constant current 5C5A
    end voltage 12V
    10 Maximum Continuous Charge Current 1 C5A  3A
    11 Maximum Continuous Discharge Current 5C5A  15A
    12 Operation Temperature Range Charge: 0~45 60±25%R.H.
    Bare Cell
    Discharge: -20~60
    13 Storage Temperature Range Less than 1 year: -20~25 60±25%R.H.
    less than 3 months: -20~40℃ at the shipment state
    14 Pack  Dimension

    High:.max73mm

    Width: max69mm

    Thickness: max19mm

    Initial  Dimension
