Digital battery

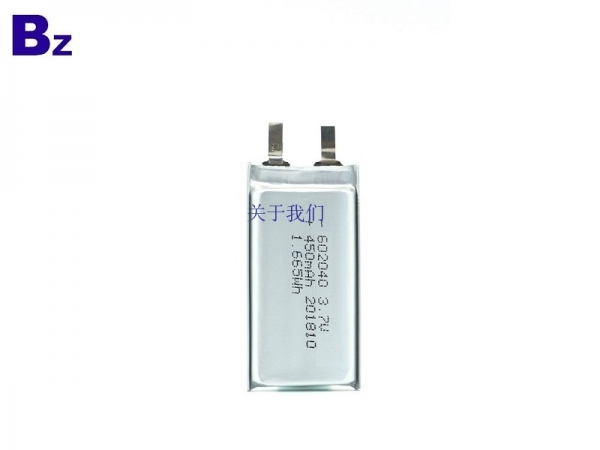

China Lithium Battery Factory Custom Made High Quality Battery for Bluetooth Headset BZ 602040 3.7V 450mAh Li Polymer Battery with KC Certificate

    Place of Origin: Guangdong, China
    Brand Name: BZ
    Model Number: 602040
    Type: Li-polymer
    Nominal Voltage: 3.7V
    Size: 6*20*42mm
    Nominal Capacity: 450mAh
    Product name: BZ 602040
    Warranty: 1 Year
    Weight: 10g
    Cycle life: 500 Times
    Application: Battery for Bluetooth Headset
    Certificate: CE/RoHS/UN38.3/MSDS/KC
    Payment: Paypal.TT.Escrow.Western Union
    Max charge current: 1C

  • Battery for Bluetooth Headset
    450mAh Li Polymer Battery with KC Certificate
    Custom Made High Quality Lithium Battery


    Product Parameters

    No.

    Item

    General Parameter

    Remark

    1

    Rated Capacity

    Typical

    500mAh

    Standard discharge(0.2C C5A) after Standard charge

    Minimum

    450mAh

    2

    Nominal Voltage

    3.7V

    Mean Operation Voltage

    3

    Voltage at end of

    3.0V

    Discharge Cut-off Voltage

    Discharge

    4

    Charging Voltage

    4.2±0.03V



    5

    Internal Impedance

    ≤50mΩ

    Internal resistance measured at AC 1KHZ after 50% charge

    The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

    6

    Standard charge

    Constant Current 0.2C5A

    Charge time : Approx 6h

    Constant Voltage 4.2V

    0.01 C5A cut-off

    7

    Standard discharge

    Constant current 0.2 C5A



    end voltage 3.0V

    8

    Fast charge

    Constant Current 0.5C5A

    Charge time : Approx 2.5h

    Constant Voltage 4.2V

    0.01 C5A cut-off

    9

    Fast discharge

    Constant current 0.5C5A



    end voltage 3.0V



    10

    Maximum Continuous Charge Current

    1 C5A



    11

    Maximum Continuous Discharge Current

    1C5A



    12

    Operation Temperature Range

    Charge: 0~45

    60±25%R.H.

    Bare Cell

    Discharge: -20~60



    13

    Storage Temperature Range

    Less than 1 year: -20~25

    60±25%R.H.

    less than 3 months: -20~40℃

    at the shipment state

    14

    Pack  Dimension

    High: max42mm

    Width: max20mm
    Thickness: max6mm

    Initial  Dimension
